Wheel Loader For Sale

As a profeesional wheel loader manufacturer, Ean Machinery can supply kinds of wheel loaders for sale at low price. Color and Logo can be customized by your requirment, If you want to purchase factory price wheel loader, Ean Group will be your ideal supplier.

Fit Various Attachment as You Need

grain bucket
grain bucket
sereen bucket
sereen bucket
snow bucket
snow bucket
4 in 1 bucket
4 in 1 bucket
2 in 1 bucket
2 in 1 bucket
grass fork
grass fork
wood fork
wood fork
small grass fork
small grass fork
NO.1 sweeper
NO.1 sweeper
NO.2 sweeper
NO.2 sweeper
snow blade
snow blade
V snow blade
V snow blade
soft clamp
soft clamp
pellet fork
pellet fork
NO.2 pellet fork
NO.2 pellet fork
snow blower
snow blower

Ean Wheel Loader Models And Technical Parameters

ZL08 Rated Load: 800KG

Rated Load: 800kg
Operation Weight: 2620kg
Bucket Capacity: 0.4cbm
Bucket Width: 1400mm
Arm Width: 20mm
Dimension: 5100*1600*2700mm
Max. Dumping Height: 2800mm
Engine: Quanchai 2105G(24kw, 32.64HP)
Gearbox: Mechanical
Tyre Size: 10.00-16
Axle: Isuzu Axle
Battery: 60A
Frame: European Enhance Frame

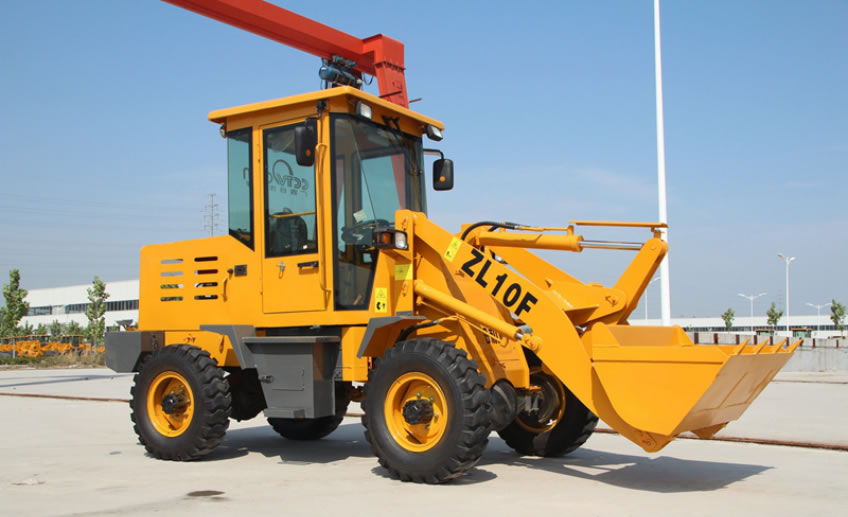

ZL10 Rated Load: 1000KG

Rated Load: 1000kg
Operation Weight: 2910kg
Bucket Capacity: 0.5cbm
Bucket Width: 1700mm
Arm Width: 22mm
Dimension: 5550*1810*2750mm
Max. Dumping Height: 2800mm
Standard Engine: Yunnei 490(39kw,53.04HP)
Optional Engine: Quanchai 490 (38kw,51.68HP)
Gearbox: Mechanical
Tyre Size: 15/90-16
Axle: Isuzu Axle
Battery: 80A
Frame: European Enhance Frame

ZL12 Rated Load: 1200KG

Rated Load: 1200kg
Operation Weight: 3610kg
Bucket Capacity: 0.8cbm
Bucket Width: 1850mm
Arm Width: 25mm
Dimension: 5620*1900*2800mm
Max. Dumping Height: 2850mm
Standard Engine: Yunnei 495 Turbocharge(60kw,81.6HP)
Optional Engine: Yunnei 4102 Turbocharge(65kw,88.4HP), Weichai 4102 Turbocharge(56kw,76.16HP)
Gearbox: 265 Automatic
Tyre Size: 23.5/70-16
Axle: 18E Small Hub Reduction Axle
Battery: 80A
Frame: European Enhance Frame

ZL15 Rated Load: 1500KG

Rated Load: 1500kg
Operation Weight: 4530kg
Bucket Capacity: 1.0cbm
Bucket Width: 2050mm
Arm Width: 30mm
Dimension: 5900*2100*2970mm
Max. Dumping Height: 3250mm
Standard Engine: Yunnei 4100 Turbocharge(65kw,88.4HP)
Optional Engine: Weichai 4102 Turbocharge(56kw,76.16HP), CUMMINS 4BTA3.9-C100(74KW,100.6HP)
Gearbox: 265 Automatic
Tyre Size: 16/70-20
Axle: 20D-3 Big Hub Reduction Axle
Battery: 80A
Frame: European Enhance Frame

ZL18 Rated Load: 1800KG

Rated Load: 1800kg
Operation Weight: 5700kg
Bucket Capacity: 1.1cbm
Bucket Width: 2250mm
Arm Width: 30mm
Dimension: 6250*2300*2900mm
Max. Dumping Height: 3500mm
Standard Engine: Quanchai 4108(87kw,118.32HP)
Optional Engine: Weichai 4102 Turbocharge(56kw,76.16HP), CUMMINS 4BTA3.9-C100(74KW,100.6HP)
Gearbox: 280 Automatic
Tyre Size: 16/70-20
Axle: 20G Big Hub Reduction Axle
Battery: 100A
Frame: European Enhance Frame

ZL20 Rated Load: 2000KG

Rated Load: 2000kg
Total operating weight: 5200kg
Rated Bucket Capacity: 1.1cbm
Max.Gradeability: 30°
Dumping Height: 3200mm
Dumping Reach: 860mm
Total Cycle Time: 9s
Overall Dimensions: 5800x2170x2880mm
maximum breakout force: 48KN
Engine Model: WEICHAI huafeng 4102 (55kw, 2400rpm)
Gear box: Counter shaft power shift
Max.Speed: 25km/h
Model of Axle: Hub Reduction Axle
Wheel Base: 2280mm
System Working Pressure: 16Mpa
Service Brake: Air assisted oil disk on 4 wheels

ZL30 Rated Load: 3000KG

Performance

Dimension: 6890*2440*3200mm
Rated Load: 3000kg
Operate Weight: 9700kg
Bucket Width: 2400mm
Bucket Capacity: 1.85m³
Arm Thickness: 35mm
Max. Dumping Height: 3150mm
Min. Dumping Reach: 1250mm
Frame: European Reinforced Frame

Engine

Model: Wei Chai DEUTZ WP6G125E22
Rated Power: 92kw(125.12hp)
Rated Speed: 2200 rpm
Cylinder: Six-Cylinder
Type: Turbocharge Aspiration
Storage Battery: 100A Free-Maintenance
Optional Engine: CUMMINS 6BTA5.9-C125 (93kw/2200rpm, 126.48hp), CUMMINS 6BTA5.9-C150 (92kw/2200rpm, 125.12hp)

Transmission system

Gearbox Model: YJ320B Automatic
Axle: Meritor Big Hub Reduction Axle
Drive Mode: Four-Wheel Drive
Battery: 100A Maintenance-Free

Steering System

Steering Angle: ±35°
Pattern: Articulated Type, Full-Hydraulic Power Steering

Braking System

Type: Gas Cap Oil Brake

Tyre

Size: 17.5-25

Optional

Hydraulic Joystick Pilot Valve
Quick Hitch, Quick-Change Bucket,
Quick-Change Pallet Fork, Quick-Change Screening Bucket
Quick-Change Grass Fork, Quick-Change Wood Fork
Quick-Change Snow Blow , Quick-Change Snow Bucket
Quick-Change ‘V’ Snow Plow, Quick-Change Sweeper
4 in 1 Bucket, 2 in 1 Bucket
Air Condition, Rear View Camera

ZL50 Rated Load: 5000KG

Performance

Rated load: 5000kg
Overall weight: 17000kg
Rated bucket capacity: 3m3
Maximum tractive force: 152KN
Maximum breakout force: ≥170KN
Maximum grade ability: 30℃
Maximum dump height: 3150mm
Maximum dump reach: 1250mm
Overall dimension (L×W×H): 7920×3050×3400mm
Minimum turning radius: 6640mm

Engine

Model: Weichai Steyr WD10G220E22
Type: lnline water cooling dry cylinder injection
No. of cylinder-bore/stroke: 6-126×130mm
Rated power: 162kw–2000r/min
Maximum torque: 860N.m
Min fuel-consume ratio: ≤215g/kw.h

Transmission system

Torque converter: YJ375
Gearbox mode: Power shift normally engaged straight gear
Gear shift: 4 forward shift 4reverse shift
Maximum speed: 38km/h

Drive axles

Main reducing spiral: bevel gear grade 1reduction
Decelerating mode: planetary reduction,grade 1
Wheel base (mm): 3200mm
Wheel tread: 2250mm
Minimum ground clearance: 450mm

Hydraulic system

System working pressure: 18MPa
Boom lifting time: 5.95±0.2s
Total time: 10.95±0.5s
Fuel tank capacity: 300L
Function of leveling automatically: yes

Brake system

Service brake: air over hydraulic disc brake on 4 wheels
Parking brake: manual parking brake
Type specification: 23.5-25

Tyre

Front tyre pressure: 0.4Mpa
Rear tyre pressure: 0.35Mpa

Deatails Of Our Wheel Loaders

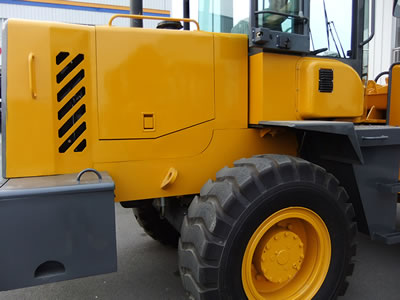

details of Ean wheel loaders 1

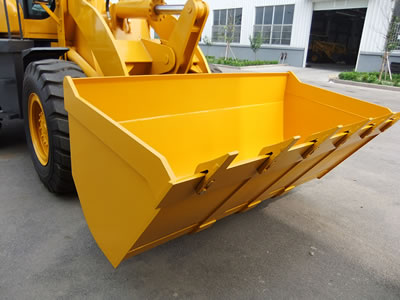

details of Ean wheel loaders 2

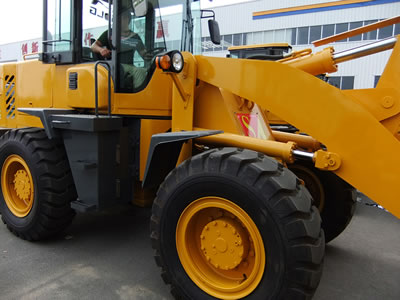

details of Ean wheel loaders 3

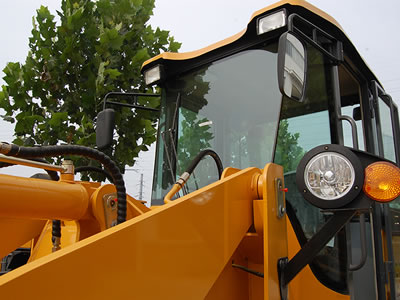

details of Ean wheel loaders 4

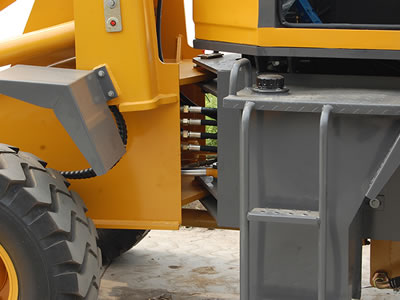

details of Ean wheel loaders 5

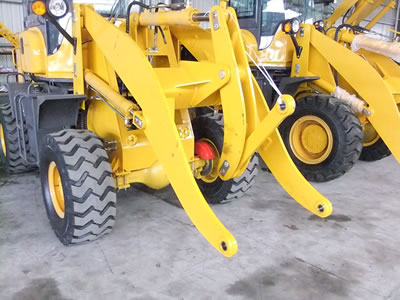

details of Ean wheel loaders 6

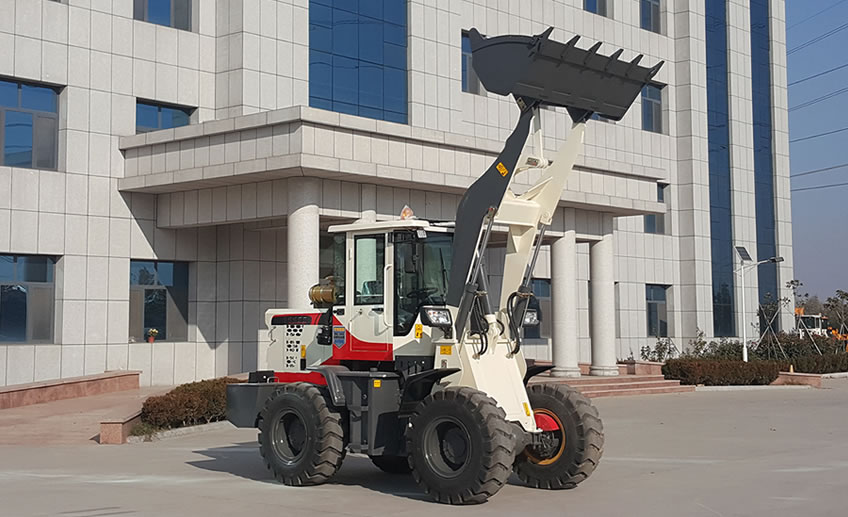

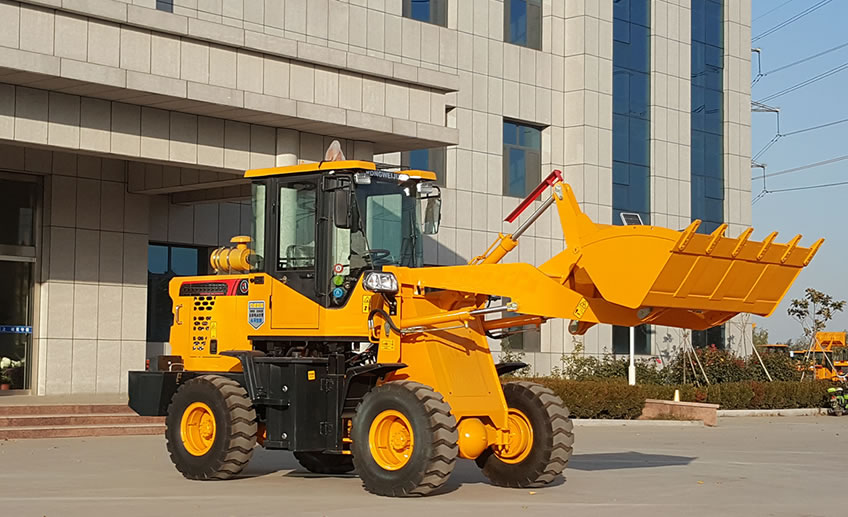

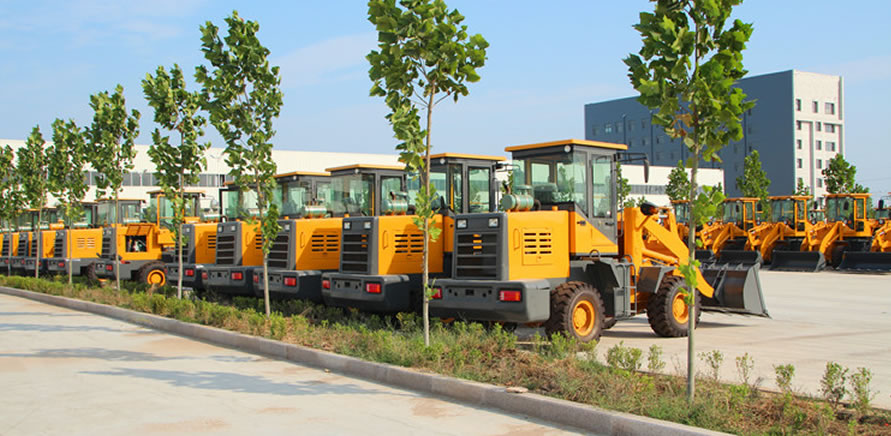

Ean wheel loader for sale in our factory

Want Get Wheel Loader Prices To Purchase?

Please feel free to leave your requirement about wheel loader for sale, We will reply you in 12 hours.
