A concrete plant, also known as a batch plant or batching plant or a concrete batching plant, is equipment that combines various ingredients to form concrete. Some of these inputs include water, air, admixtures, sand, aggregate (rocks, gravel, etc.), fly ash, silica fume, slag, and cement. As a professional concrete batching plant manufacturer, Ean Machinery can supply you all types of concrete batching plants for sale, quality and fair price, Such as stationary concrete batching plant, mobile batching plant and so on. If you want to purchase concrete plants, We will be your ideal supplier.
Ean Featured Concrete Batching Plant

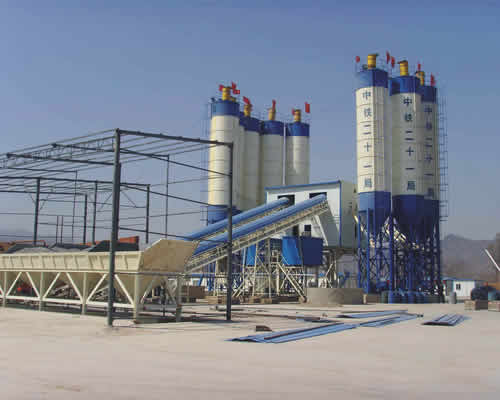

The HZS series of concrete mixing plants(HZS25-240) are developed by Ean Machinery on the basis of bringing in the world’s frontier technologies, combining the advantages and technologies of the sophisticated domestic and foreign machines that have emerged in recent years, and taking advantage of the company’s experience in manufacturing concrete mixing equipment for many years. Having reached the national standards, this series of products have passed the test by the National Building and City Construction Machinery Quality Supervision and Testing Center of China.
Besides, products of this series have also passed the sci-tech achievement appraisal carried out by the National Science and Technology Commission of China and organized by Hanan Provincial Department of Science and Technology. According to their appraisal, this series of products are “the only products in the same field that have reached the advanced domestic level in general index and attained the advanced world level in such aspects as productivity, noise control, operation and environmental production”. The HZS120 concrete mixing plant in this series was appraised as a new key product of China in 2014.

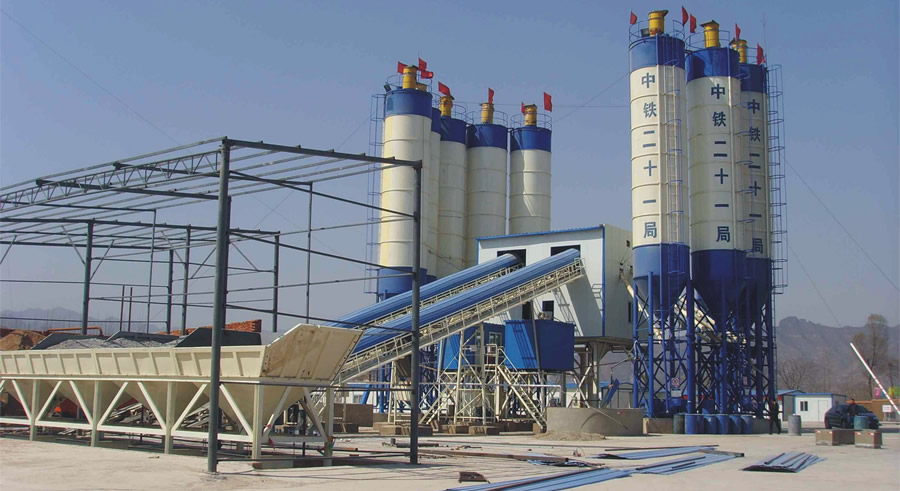

Stationary Concrete Batching Plant Models And Parameters
Item: HZS25
Productivity: 25m³/h
Main mixer: JS500
Batching machine: PLD800
Kinds of aggregate: 43134
Max aggregate size: 80/60mm
Discharging height: 3800mm
Item: HZS35
Productivity: 35m³/h
Main mixer: JS750
Batching machine: PLD1200
Kinds of aggregate: 43134
Max aggregate size: 80/60mm
Discharging height: 3800mm
Item: HZS50
Productivity: 50m³/h
Main mixer: JS1000
Batching machine: PLD1600
Kinds of aggregate: 3
Max aggregate size: 80/60mm
Discharging height: 3800mm
Item: HZS60
Productivity: 60m³/h
Main mixer: JS1000
Batching machine: PLD1600
Kinds of aggregate: 4
Max aggregate size: 80/60mm
Discharging height: 3800mm
Item: HZS75
Productivity: 75m³/h
Main mixer: JS1500
Batching machine: PLD2400
Kinds of aggregate: 4
Max aggregate size: 80/60mm
Discharging height: 3800mm
Item: HZS90
Productivity: 90m³/h
Main mixer: JS1500
Batching machine: PLD2400
Kinds of aggregate: 4
Max aggregate size: 80/60mm
Discharging height: 3800mm
Items: HZS120
Productivity: 120m³/h
Main mixer: JS2000
Batching machine: PLD3200
Kinds of aggregate: 4
Max aggregate size: 80/60mm
Discharging height: 3800mm
Item: HZS180
Productivity: 180m³/h
Main mixer: JS3000
Batching machine: PLD4800
Kinds of aggregate: 4
Max aggregate size: 80/60mm
Discharging height: 4200mm
Item: HZS240
Productivity: 240m³/h
Main mixer: JS4000
Batching machine: PLD6400
Kinds of aggregate: 4
Max aggregate size: 80/60mm
Discharging height: 4200mm

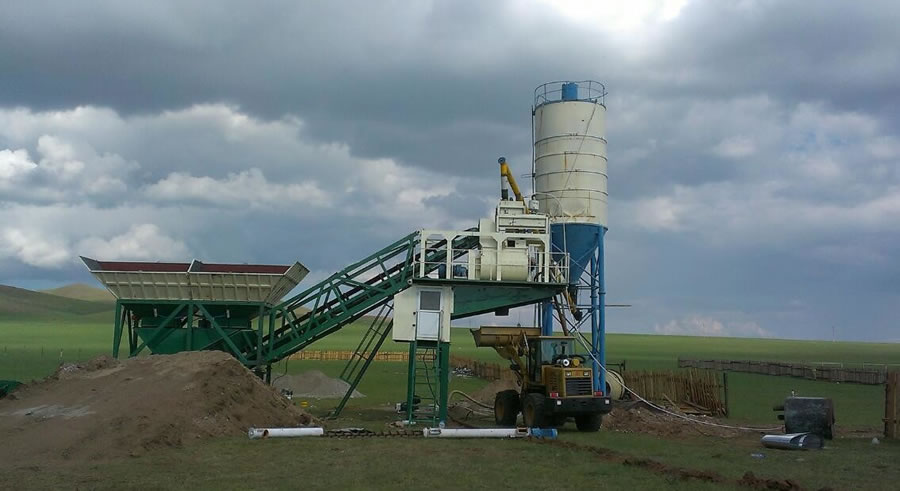

With the increasing requirement for the mobility and flexibility for the concrete demand, the mobile concrete plant has been gradually become the mainstream for the concrete plant market.
The demand for the YHZS series mobile concrete plant is growing fast year by year, and the market for the mobile concrete plant is also expanded. The model from YHZS25-YHZS120 mobile concrete plant can be supplied by Ean Machinery.
With the stable performance, rich experience, and even favorable price, EAN made mobile concrete batching plant sales is booming for the last 3 years.
Mabile Concrete Batching Plant Models And Parameters
Item: YHZS25
Productivity: 25m³/h
Main mixer: JS500
Discharging height: 3.8m
Control of plant: Automatic PLC
Working state dimension: 19.3*3.2*7.5m
Total weight: 14.66T
Item: YHZS35
Productivity: 35m³/h
Main mixer: JS750
Discharging height: 3.8m
Control of plant: Automatic PLC
Working state dimension: 19.3*3.2*7.5m
Total weight: 22T
Item: YHZS50
Productivity: 50m³/h
Main mixer: JS1000
Discharging height: 4.1m
Control of plant: Automatic PLC
Working state dimension: 16.7*2.73*5.45m
Total weight: 26T
Item: YHZS60
Productivity: 60m³/h
Main mixer: JS1000
Discharging height: 4.1m
Control of plant: Automatic PLC
Working state dimension: 16.7*2.73*5.45m
Total weight: 26T
Item: YHZS75
Productivity: 75m³/h
Main mixer: JS1500
Discharging height: 4.1m
Control of plant: Automatic PLC
Working state dimension: 20.3*3.3*8.5m
Total weight: 29T
Item: YHZS90
Productivity: 90m³/h
Main mixer: JS1500
Discharging height: 4.1m
Control of plant: Automatic PLC
Working state dimension: 20.3*3.3*8.5m
Total weight: 29T
We also can customized concrete batching plant by your requirement, If you have some special needs, Please contact to us now.
